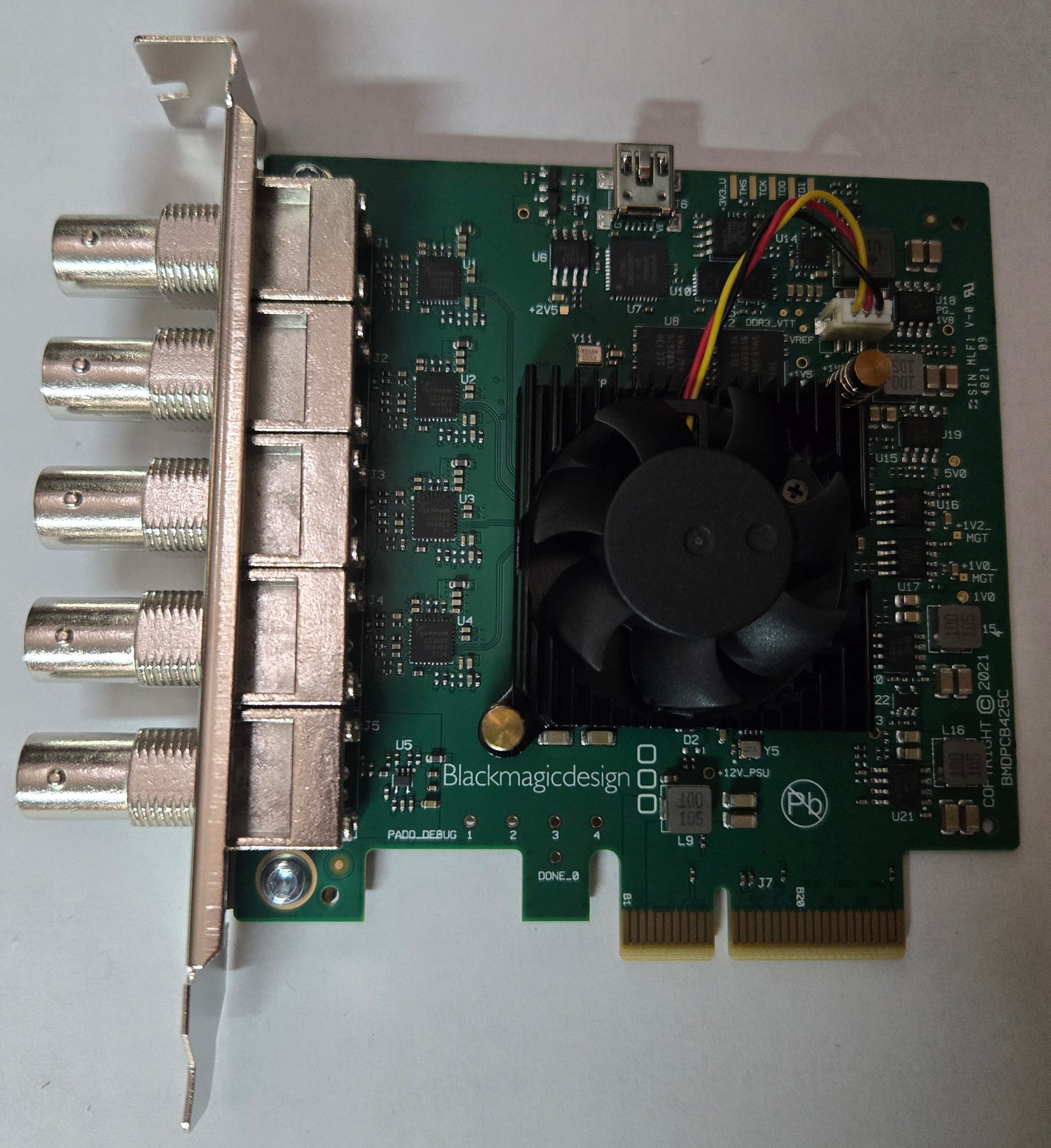

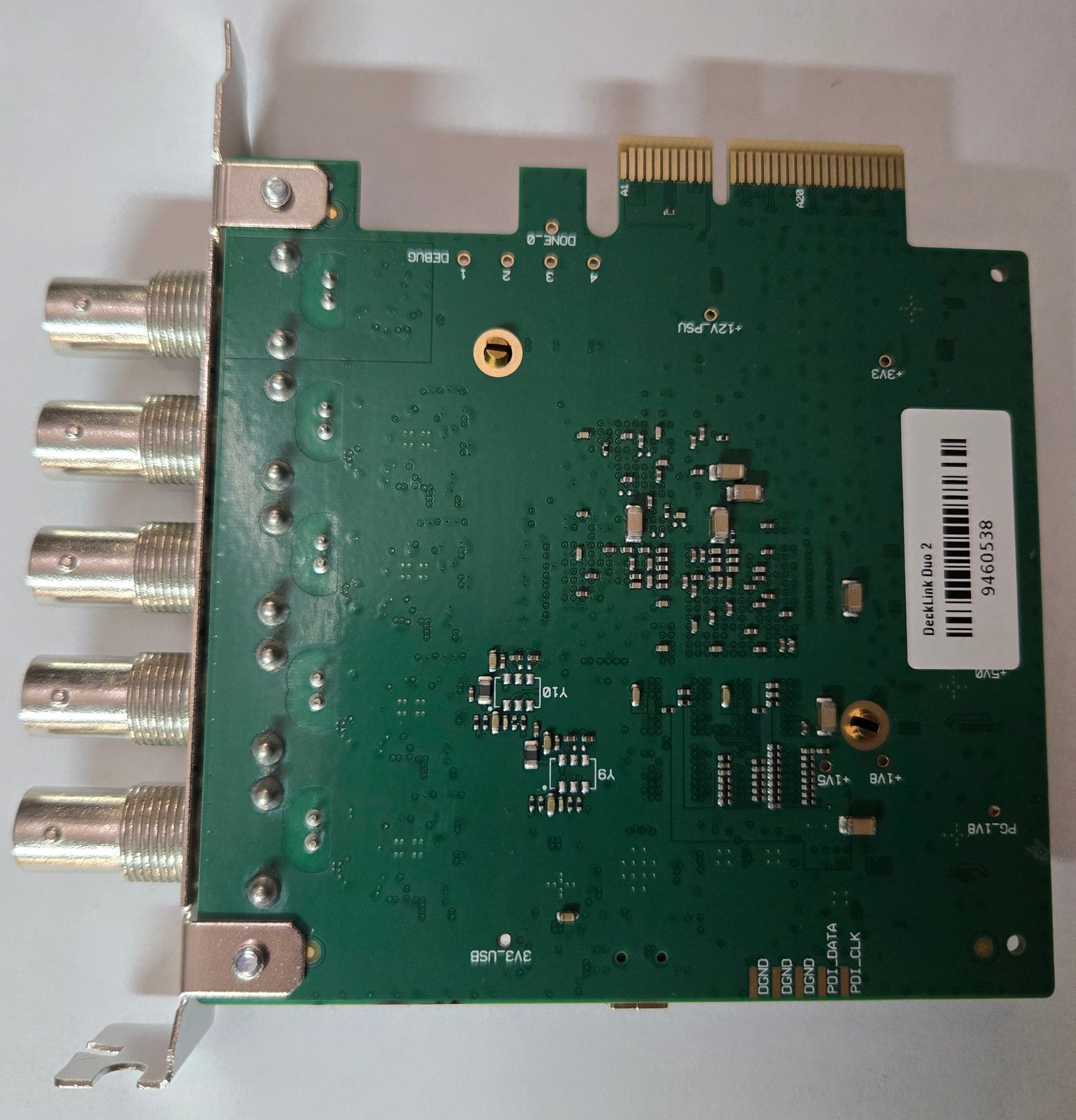

Blackmagic DeckLink Duo 2 SDI PCIe Capture Card + HDMI Bracket & Audio Breakout Cable

Like new. Not in original packaging.

Pulled from Dell Precision 5820 workstations that were powered on for 3 hours or less.

These workstations were originally deployed by a 3D technology company that went bankrupt before full deployment. Most units were only powered on briefly during initial setup. Each card was professionally removed and tested before listing.

---

Product Overview

The Blackmagic Design DeckLink Duo 2 is a professional video capture and playback card with four independent 3G-SDI connections, allowing for flexible multi-channel workflows. Ideal for broadcast, live production, media servers, or post-production environments.

Each SDI channel can be configured independently for input or output, making the Duo 2 incredibly versatile for simultaneous ingest and playout, multi-camera recording, or real-time graphics playout systems.

---

Key Features

4 Independent 3G-SDI Connections – Each can be configured as input or output.

1080p60 Capture/Playback – Supports up to 1080p60 in YUV 10-bit or RGB 10/12-bit.

Low-Profile Form Factor – Ships with full-height bracket installed (low-profile bracket not included).

PCIe x4 Interface – Compatible with a wide range of professional workstations.

Multi-Stream Input/Output – Perfect for OBS, vMix, Wirecast, and other broadcast tools.

Compatible with Windows, Mac, and Linux – Broad software support via DeckLink SDK and drivers.

---

Technical Specs

SDI Video I/O: 4x bidirectional 3G-SDI

SDI Rates: 270Mb, 1.5G, 3G

SDI Audio: 16 channels embedded

Video Formats: Up to 1080p60 (YUV/RGB)

Interface: PCIe x4 Gen 2

OS Compatibility: Windows / macOS / Linux

Included: Full-height bracket

---

Condition

Clean and fully functional. Professionally removed and tested. Minimal cosmetic wear from storage. No original packaging.

---

What’s Included

1x Blackmagic DeckLink Duo 2 (with full-height bracket)

Each card is placed in an anti-static bag, padded with bubble wrap, and shipped in a plain cardboard box for safe delivery.
